Hydraulic pumps are the driving force behind hydraulics systems, converting mechanical energy into pressurised fluid movement. These pumps ensure smooth operation in industries such as construction, manufacturing, and aviation.

Hydraulic pumps can be either fixed displacement or variable displacement. A hydraulic pump cannot be both fixed displacement and variable displacement at the same time, but some models are convertible or designed to function in either mode with modifications.

Having a solid understanding of the differences between these two types of pumps is essential when designing or maintaining a hydraulics system. The right pump selection can substantially impact energy efficiency, performance, and system longevity. Let’s explore how these pumps function, compare their advantages and limitations, and help you determine which option best suits your needs.

What Are Fixed Displacement Hydraulic Pumps?

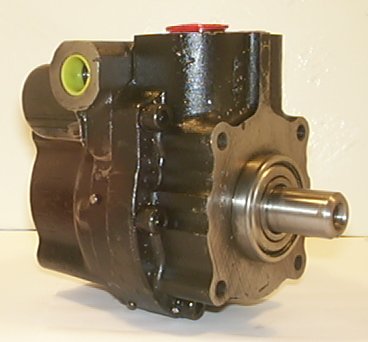

A fixed displacement pump moves a consistent amount of fluid with each revolution of its input shaft, delivering a steady flow rate regardless of system demand. This makes it ideal for applications where a constant supply of pressurised fluid is needed. These pumps are widely used in industrial and mobile hydraulics systems where reliability and simplicity are vital.

Types of Fixed Displacement Pumps

Several types of fixed displacement pumps are commonly used in various applications:

• Gear Pumps – One of the most common fixed displacement pump types, gear pumps use meshing gears to move fluid. They are cost-effective, durable, and well-suited for low- to medium-pressure applications.
• Vane Pumps – These pumps use rotating vanes inside a cam ring to generate fluid movement. While typically used in medium-pressure applications, they provide a smoother flow rate than gear pumps.
• Fixed Displacement Axial Piston Pumps – These pumps feature pistons arranged in a circular pattern, moving fluid through the system with high efficiency and pressure capabilities.

Advantages of Fixed Displacement Pumps

✔ Simple and reliable – With fewer moving parts, these pumps require less maintenance.
✔ Lower cost – More affordable than variable displacement alternatives.
✔ Ideal for continuous operation – Used in open loop systems where a constant flow rate is required.

Limitations of Fixed Displacement Pumps

✖ Inefficiency in variable-load systems – Since the flow rate remains constant, excess fluid must be redirected, leading to energy waste.
✖ Less flexibility – Cannot adjust to changing flow requirements, making them unsuitable for applications with varying speeds of operation.
Fixed displacement pumps are commonly used in material handling equipment and hydraulic presses, where steady operation is more important than adjustability.

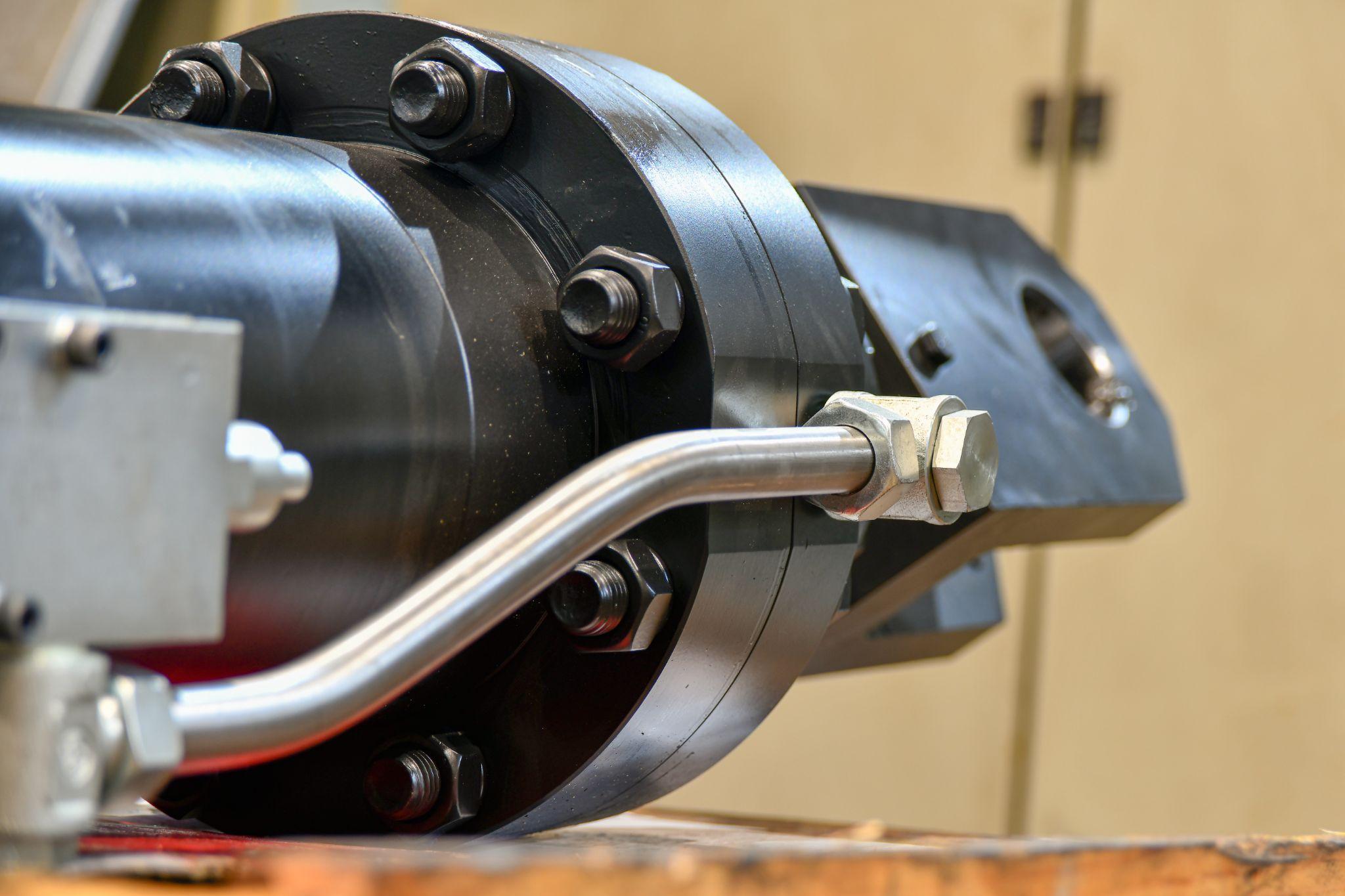

What Are Variable Displacement Hydraulic Pumps?

A variable displacement pump can adjust the amount of fluid it delivers per cycle, allowing for greater efficiency in applications where flow requirements change. These pumps use internal mechanisms, such as pressure compensators, to modify displacement dynamically.

How Variable Displacement Pumps Work

Variable displacement pumps regulate flow rate by adjusting internal components, such as swashplates, cam rings, or radial pistons. These pumps provide greater efficiency and adaptability in hydraulic systems with changing flow requirements. The most common types include:

• Axial Piston Pumps – These utilise an adjustable swashplate to control the piston stroke length, varying the amount of fluid delivered per cycle. They are widely used in aircraft systems and mobile hydraulic equipment.
• Radial Piston Pumps – These feature pistons arranged radially around a central cam, with displacement adjusted by modifying the cam eccentricity. These pumps provide high-pressure output, which makes them ideal for hydraulic presses and high-load applications.
• Variable Displacement Vane Pumps – They adjust fluid movement by shifting the cam ring, allowing precise flow control. Known for smooth operation and low noise levels, they are commonly used in machine tools, injection moulding machines, and automotive test systems.

Each of these variable displacement pump types is designed to optimise energy efficiency, reduce heat generation, and provide precise hydraulic fluid control based on system demand.

Advantages of Variable Displacement Pumps

✔ Energy efficiency – Adjusts flow rate to meet demand, reducing wasted power.
✔ Lower heat generation – Less excess fluid movement results in less heat buildup.
✔ Optimised for variable loads – Suitable for closed loop and open loop systems where flow demand changes frequently.

Limitations of Variable Displacement Pumps

✖ Higher complexity – Requires precise calibration and maintenance.
✖ Higher cost – More expensive than fixed displacement alternatives.
Variable displacement pumps are ideal for construction machinery, aircraft hydraulic systems, and industrial automation, where efficiency and adaptability are important.

Differences Between Fixed and Variable Displacement Pumps

When selecting between fixed and variable displacement hydraulic pumps, it’s essential to grasp their fundamental differences. Below is a comparison of their main characteristics:

How to Choose Between Fixed and Variable Displacement Pumps

Selecting the right hydraulic pump depends on various factors. Key considerations include:

1. System Requirements

• If your hydraulics system operates at a steady flow rate, a fixed displacement pump is likely the best choice.
• If your system experiences varying loads and needs to adapt dynamically, a variable displacement pump will improve efficiency.

2. Energy Efficiency

• In systems where power conservation and reducing heat buildup are priorities, a variable displacement pump is the better option.
• For simple, low-maintenance setups where energy use is not a major concern, a fixed displacement pump provides reliability.

3. Application Type

• Industrial presses, lubrication systems, and hydraulic lifts benefit from fixed displacement pumps.
• Construction machinery, aircraft hydraulic systems, and mobile hydraulics require variable displacement pumps for efficiency and adaptability.

4. Cost and Maintenance

• Fixed displacement pumps are more affordable upfront and easier to maintain, making them ideal for budget-conscious applications.
• Variable displacement pumps offer long-term energy savings but require compensator settings and pressure control for optimal operation.
